ABM Brand

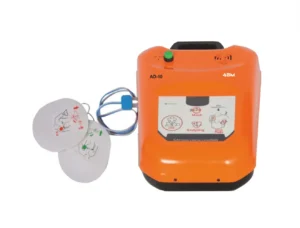

Automated External Defibrillator AD-10
The AD-10 is an easy-to-use defibrillator featuring detailed voice prompts and visual icons for clear user guidance. It offers a battery capacity of 200 shocks or 4 hours of use, with a 20-second delay between shocks. The device automatically evaluates the patient’s ECG to determine if a shock is needed and includes simple controls with an on/off button and a red shock button for quick response.
Features
- Detailed voice prompts and visual icons for guidance to user
- Battery capacity: 200 shocks or 4 hours
- 20-second delay time between two shocks
- Evaluates patient ECG to determine if rhythm is shockable
- Controls: On/Off button, Red shock button
Technical Specification
| Dimensions | 7.5cm x 20cm x 24 cm |
| Weight | Approx. 2.2 kg |
| Battery Type | 15V/4.6AH, Lithium manganese dioxide, disposable long-life primary battery |
| Battery Capacity | minimum 200 shocks of 200 Joule or 4 hours |
| Standby life | Five years typical when battery is installed by the install-by date |
| Operating Temp | -50°C to +50°C |
| Humidity | Up to 95 % non-condensing |
| Waveform | Biphasic truncated exponential |
| AED Shock Series | Energy level 200J for Adult and 50J for pediatric patients. |
| Charge Command | Automatic after identifying shockable rhythm |
| Shock Command | Front panel button, shock |
| Defibrillation Electrode | Self-adhesive adult pads |
| Voice and text prompts | Extensive text and audible messages to guide user |
