Beacon
Beaconi Smart Semi-Automatic

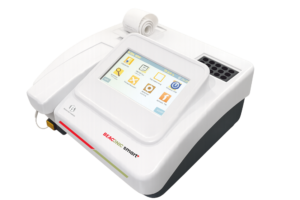

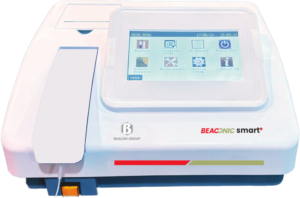

The Beacon Beaconi Smart (also listed as V-Chem Smart or Smart+) semi-automatic biochemistry analyzer supports a wide range of routine clinical chemistry tests through open programming (up to 300 parameters), flowcell/cuvette modes, and multi-wavelength photometry for accurate endpoint, kinetic, and fixed-time assays.
Key Indications
Liver Function Tests (LFT)
- SGOT (AST)
- SGPT (ALT)
- ALP (Alkaline Phosphatase)
- GGT (Gamma-GT)
- Total Bilirubin (T & D)
- Total Protein
- Albumin
- Globulin
Renal Function Tests (RFT)
- Urea (UV)
- Creatinine (Jaffe)
- Uric Acid
- Calcium
- Phosphorus
- Magnesium
Lipid Profile
- Cholesterol
- Triglycerides (TG)
- HDL Cholesterol
- LDL (calculated)
Cardiac Enzymes
- CK-NAC (CPK)
- LDH
- Amylase
- Lipase
Immunoturbidimetric Assays
- CRP (C-Reactive Protein)
- ASO (Anti-Streptolysin O)
- RF (Rheumatoid Factor)
- HbA1c
Electrolytes (with optional ISE module)
- Na, K, Cl (if supported)
Glucose & Others
- Glucose (GOD/POD)
- Direct Bilirubin
Technical Specification
| Assay Modes | 9 Modes: End Point, Rate, Fixed Time, Two Point Non-Linear, Sample Blank, Multi-Standard, Sample Blank Non- Linear, Coagulation, Absorbance |
| Programmable Tests | 120 |
| Wavelengths (Filter wheel) | 7 Filters: 340, 405, 505, 546, 578, 620, 670 nm 1 Free position |
| Flowcell | Quartz Flowcell |
| Flowcell Volume | 32 µl |
| Display | 7 Inch colour Touch screen |
| Printer | In built Thermal Printer |
| Storage | 25000 Results |
| Aspiration Volume | 200 - 1500 µl |
| Operating Voltage | 220 - 240 V, 60Hz, Online UPS 0.5 - 1.0 KVA |
| Operating Temperature | 10 to 35°C |
| Operating Humidity | <=80% RH |
