ABM Brand

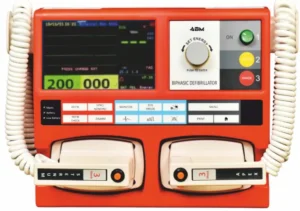

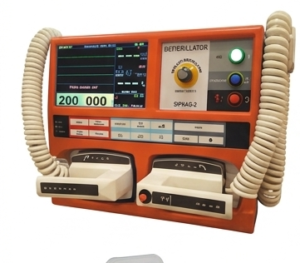

Defibrillator Monitor DF-11S
The DF-11S Defibrillator features a 7" color display with a built-in printer using 2" thermal paper. It offers variable energy levels from 2 to 200 Joules and supports both adult and pediatric paddles. With a quick 6-second charge time and battery capacity for 70–100 shocks per charge, it is compact, lightweight, and includes a voice prompt facility.
Features
- 7" color display with built in printer.
- Charging time 6sec on mains.
- Offer variable energy level selection (2, 3, 5, 10, 20, 30,50, 70, 100, 150, 200)Joules.
- Battery capacity 70-100 shocks on single charge.
- Adults and pediatric paddles support.
- Compact and light weight.
- Print out on 2" thermal paper
- Voice prompt facility.
- Optional : AED, Pacer SP02, NIBP, ETC02, 360 Joules CPR.
Technical Specification
| Display | 7-inch Color TFT |
| Display Area | 150mmx90mm |
| Dimensions | 280mm*330mm*220mm (max) without Paddle |
| Resolution | 1 BPM |
| Alarm Limit Setting | 10-250 (step of 1) |
| Weight | Approx. 6kg (max) |
