ABM Brand
Infusion Pump AB 100-I
Infusion Pump AB-100I has a 3-inch color TFT display, weighs 1.7 kg, and supports flow rates from 0.1 to 1200 ml/hr with adjustable brightness levels. It offers 12 hours of continuous operation and stores 2000 events for review and download. The pump features a three-level DPS occlusion pressure system and an anti-bolus mechanism for safe infusion. Compatible with any brand IV set after calibration, its dimensions are 120mm x 100mm x 215mm.
Features

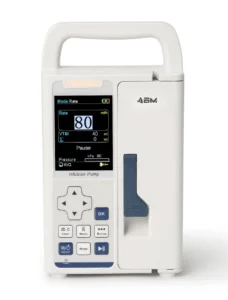

- 3 inch color TFT display.
- Weight is 1.7KG.
- Flowrate is 0.1ml/hr -1200 ml/hr.
- 1-10 levels of brightness can be selected.
- 12 hrs of continuous operation.
- 2000 events stored can be checked and downloaded.
- Three level of DPS occlusion pressure.
- Can be used with any brand IV Set after exactly calibration.

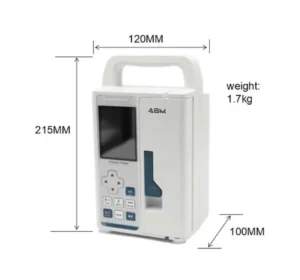

- Dimension is 120mm X 100mm X 215mm.
- Anti- bolus system.

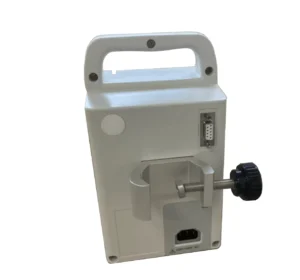

- Vertical and horizontal mounting clamp.
- Programmable and adjustable purge rate.
Technical Specification
| Protection Class | Class I, Type CF,IPX4 |
| Dimension /N.W | 120mm*100mm*215mm, 1.7kg |
| Packing Size/G.W | 250mm * 190mm * 155mm, 2.5kg |
| Fit IV tubes | Can be used with any brand IV set after ex |
| Delivery rate range | 0.1ml/h~1200mli/h(0.1ml step) 00h01min ~99h59min (1 min step) |
| Volume limit range | 0.0-9999ml (1 ml step) |
| Total Volume Range | 0.0-9999ml (1 ml step) |
| Drug library Mode | Available (only for VP3) |
| Sequential mode | Available (only for VP3) |
| KVO Rate | 0.0~5.0ml/h. Programmable and adjust able |
| Purge Rate | Programmable and adjustable |
| Brightness | 1~10 levels can be selected |
| History records | 2000 events stored can be checked and downloaded |
