ABM Brand

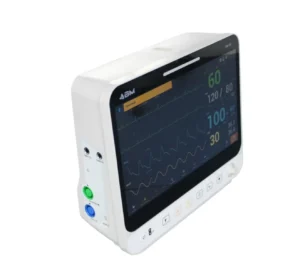

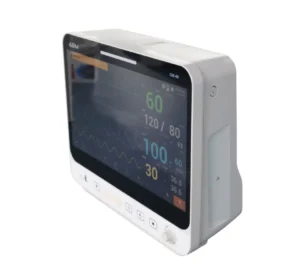

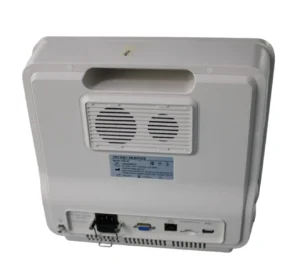

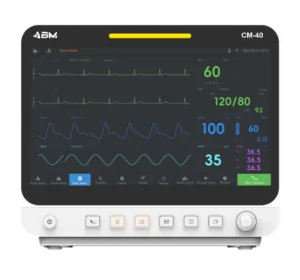

Multipara Patient Monitor CM- 40 (13.1-inch)
The CM-40 (13.1-inch) is a compact and reliable patient monitor featuring a 13.1-inch high-brightness LED display with 1366×768 resolution. It supports an optional touchscreen with gesture controls, 3/5-lead ECG, auto NIBP, Wi-Fi/LAN connectivity, and visual alarms. Designed for efficiency with low power usage and a built-in lithium battery, it’s ideal for dynamic and eco-conscious healthcare environments.
Features
- 13.1-inch LED high-light screen, high resolution 1366*768.
- Integrated design, portable.
- Optional High-sensitivity touch screens offer smooth, swift operation, full-screen touch and gesture operation, and slide and pinch to zoom among fingertips.
- Support 3/5 leads.
- Support WIFI and wired network.
- Intelligent startup of blood pressure measurement.
- Visual alarm.
- High performance, low cost, low power consumption, anti-aging, and green.
- Built-in lithium battery.
Technical Specification
| Weight | 2.4kg. |
| Display | Optional Capacitive screen. |
| Display channel | 7-channel waveform. |
| Optional configuration | CO₂, IBP, 5g. |
| Other | Trolley, wall mount. |
| ECG | Meet standards of IEC 60601-1-1-2015. |
| Gain | x0.25, 0.5, x1, x2, x4, Auto. |
| Speed | 12.5 mm/s; 25 mm/s; 20 mm/s. |
| Range | 15-350 BPM. |
