ABM Brand

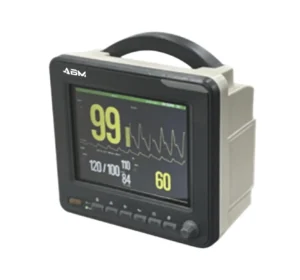

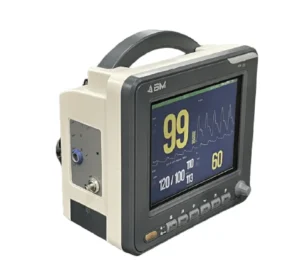

Multipara Patient Monitor VM- 20 (8″)
The VM-20 is a high-accuracy vital signs monitor featuring an 8-inch screen that displays operation manuals, SpO₂, PR plethysmography, and temperature readings. It includes 7-segment LEDs for systolic, diastolic, MAP, and cuff pressures, along with the ability to review patient history data. The monitor supports SpO₂ pitch and is suitable for neonatal use, capturing dynamic waveforms for comprehensive patient monitoring.
Features
- High-accuracy Vital Signs monitor NIBP SpO2 PR TEMP.
- 8-inch screen for operation manual, SpO2, PR, pleth, and TEMP.

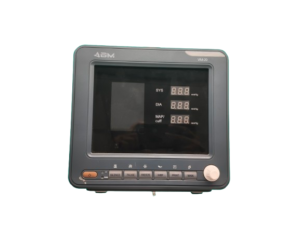

- 7-segment LEDS for Systolic pressure, Diastolic Pressure, MAP/CUFF pressure.
- History Patient data review.
- SpO2 Pitch & SpO2 workable in Neonate.
- Capture dynamic waveforms.
- Adjustable audible and visual Alarms.
- Adjustable brightness.
- Time delay switch-off function keep the monitor data; restart the monitor.
- Complete and flexible mounting solution for transportation and inpatient monitoring.
Technical Specification
| Pulse Rate Range | Range 20-254 bpm / Accuracy +/- 3 bpm. |
| Weight | 1.700 kg. |
| Measurement range | 0-100%. |
| Accuracy | 70-100%, ±2% 0-69%, unspecified. |
| Size | (L * W * H) (9.5 * 6.5 * 8.5) inches. |
| Adult | 0-120 rpm. |
| Pediatric/neonatal | 0-150 rpm. |
| Electrical Specification | 100-240v AC, 50/60Hz. |
| Max Input Power | 70VA. |
| Battery Type | 11.1V 4000mAh rechargeable Range lithium battery. |
| Standard configuration | SpO2, PR, NIBP. |
