ABM Brand
Multipara Patient Monitor

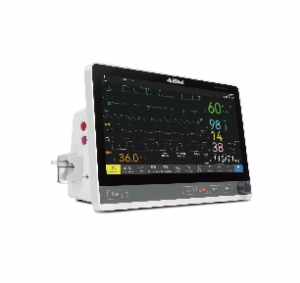

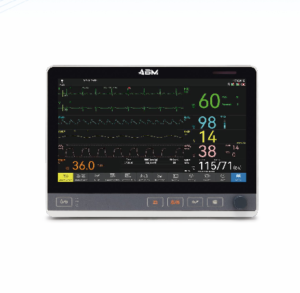

The X-5 13.3-inch Patient Monitor is a compact, high-performance monitoring system designed for hospitals, ICUs, and transport care. Its Full HD touchscreen delivers clear visualization, and the 5G Wi-Fi ensures fast connectivity. Built for reliability and mobility, it offers long battery backup, advanced data storage, and multi-parameter measurement accuracy. Ideal for continuous patient observation in critical environments.
Features
- 13.3” color TFT touchscreen, 1920×1080 resolution.
- Lightweight and portable design (4.0 kg).
- Long-life 5100 mAh battery (≥ 8 hours).
- Built-in 5G Wi-Fi & Bluetooth BLE 4.0 + EDR.
- Data storage: 48 hours @ 1 s trend, 1600 NIBP sets, 1800 alarm events.
- Wide measurement range: ECG, SpO₂, NIBP, RESP, TEMP.
- Optional: IBP, CO₂, C.O., Recorder, Nurse Call.
- Optional parameters are available on request and will incur additional charges.
Technical Specification
| Display | 13.3-inch TFT color touchscreen (1920×1080) |
| Size | 330.1 × 244.2 × 176.2 mm |
| Weight | 4.0 kg |
| Power Supply | 100–240 V AC, 0.6 – 0.3 A, 50/60 Hz, Over-current fuse protection supported |
| Battery | 5100 mAh, ≥ 8 hours operation |
| Connectivity | Wi-Fi 802.11 a/b/g/n (2.4 G & 5 G), Bluetooth BLE 4.0 + EDR |
| Monitoring Parameters | ECG (3-10 leads), RESP, SpO₂, NIBP, TEMP Optional: IBP, EtCO₂, C.O. |
| Environmental | Operating Temp: 0 °C – 40 °C, Humidity: 15 % – 95 % (non-condensing) |
