ABM Brand

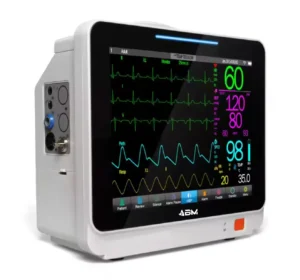

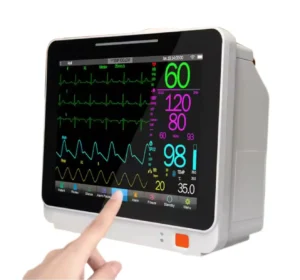

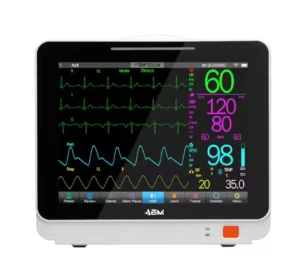

Patient Monitor CM-50
CM-50 features a 12.1-inch color TFT display with 8 waveform displays and up to 12-lead ECG analysis. It includes advanced ST segment and arrhythmia analysis, along with graphical and tabular trend review for up to 120 hours. Powered by a 2.2 mAh, 14.8V rechargeable battery, it supports external AC power (100–240V, 50/60Hz) with a maximum input of 90VA. The monitor accurately measures pulse rates ranging from 40 to 240 bpm, making it a reliable choice for comprehensive cardiac monitoring.
Features
- 12.1 color TFT display.
- 8 Wave form display, upto 12 lead ECG analysis.
- ST & arrhythmia analysis.
- Graphical & Tabular trend review (120 hours).
- 2.2 mAh 14.8V rechargeable battery.
- External power requirements: a.c 100~240 V, 50/60 Hz, Maximum input power: 90VA , Fuse : T1.5AL 250V
- Pulse Rate Range 40 ~ 240 bpm.
Technical Specification
| Display | 12.1 Inch TFT. |
| Resolution | HD 1024×768. |
| Patient Type | Suitable for Neonatal to Adult. |
| Waveforms | 7 waveforms with numerical data on one screen. |
| Indicators | Alarm, Power, Battery. |
| ECG | 3/5 lead, 15–300 bpm range, ST analysis, audio-visual alarms. |
| NIBP | Pulse wave method, manual/auto/continuous modes, mmHg scale. |
| SpO₂ | 0–100% range, ±2% accuracy, pleth waveform. |
