ABM Brand

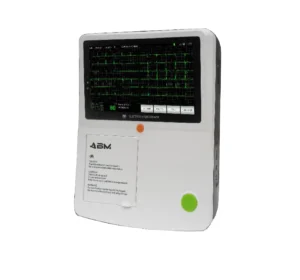

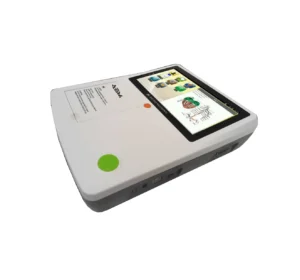

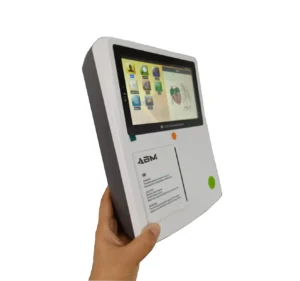

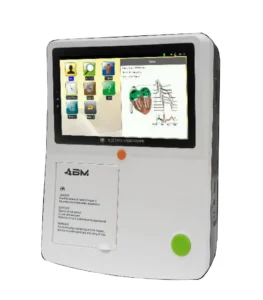

Three Channel ECG Machine ECG 3I
ECG 3I is a compact 3-channel ECG machine with a 7" TFT touchscreen display. It supports manual and auto modes, 3-lead synchronous acquisition, and can store over 200 ECG reports. Equipped with AC, EMG, and anti-drift filters, it ensures accurate readings. The device features high-resolution thermal printing at speeds of 12.5, 25, and 50 mm/sec on 80×20 mm paper, USB flash disk support, and RS232 interface—making it reliable and efficient for clinical use.
Features
- 7" inch Display TFT touch screen display
- The machine can store more than 200 ECG reports
- Operating Mode : Manual and auto
- The machine have AC, EMG and anti drift Fitter
- Support USB flash disk
- High resolution thermal printing paper and speed is 12.5, 25, 50 mm/sec
- Standard external input /output interface and RS232 communication interface
- 3 lead synchronous acquisition, synchronous affiliation, three track record
- The paper size is 80X20mm
Technical Specification
| Input circuit current | ≤0.1μ A |
| Resolution | 12bit/1000Hz |
| Operation mode | Manual/Auto |
| Noise level | ≤15μ Vp-p |
| Threshold | ≤20μ V |
| Paper speed | 12.5, 25, 50mm/s (±3%) |
| Sensitivity | 5, 10, 20mm/mV |
| Recorder | High resolution thermal printer |
| Battery | Built-in rechargeable Li-ion battery |
| Dimension | 256mm x 204mm x 66mm |
